Injector Needle Cleaning | NPKUSA

Call NPK LLC for all Injector Needle Cleaning and Straightening

*****************************************************************

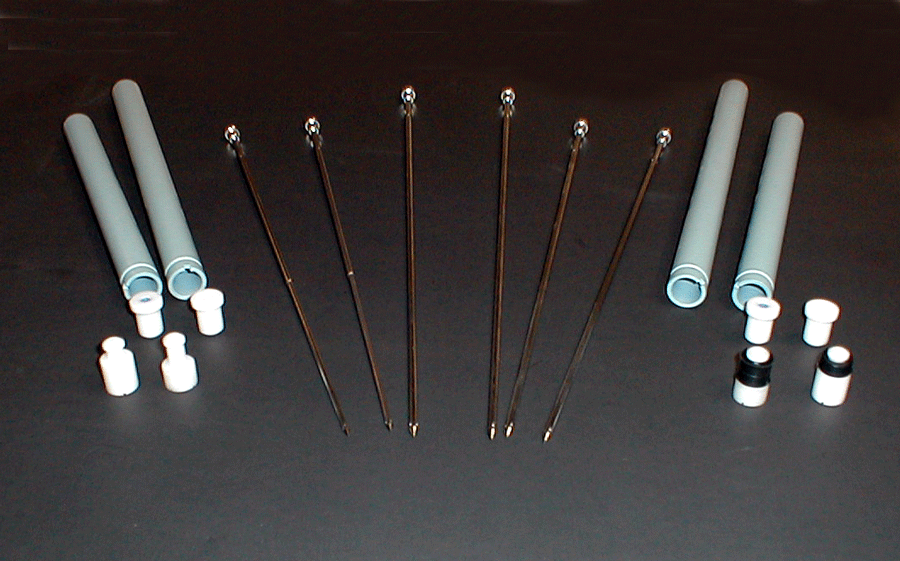

NPKLLC can clean and straighten all injector needles or provide new ones upon request.

NPKLLC cleans the injector needles using an Ultra-Sonic Cleaner which is a must for maximizing your injector’s cleaning agent using ultra-high frequency sound waves passing through a cleaning solution creating cavitation. Cavitation creates a high-energy vacuum effect, safely pulling debris, foreign particles and contaminants from object surfaces. If you would like to purchase your own ultra-sonic cleaner please contact us.

Don't want to purchase a unit for yourself?

NPK LLC will clean the needles for you. Simply ship them to us and upon receipt we will clean them and shipped back to you the following business day.

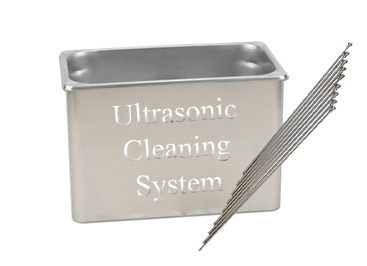

Ultrasonic Cleaning System: Part Number OEMPNWKI11508
What is ultrasonic cleaning?

Ultrasonic Cleaning combines the sciences of engineering and chemistry to create an unsurpassed clean. It occurs
when ultra-high frequency sound waves are passed through a cleaning solution creating cavitation. Cavitation creates
a high-energy vacuum effect, safely pulling debris, foreign particles and contaminants from object surfaces.
With Ultrasonic Cleaning, both the exterior and interior surfaces, including blind holes, are thoroughly cleaned.
Ultrasonic Cleaning has been proven to be 16 times more affective than manual methods and cleans areas that are
unreachable with manual cleaning.

The SweepZone technology uses "Smart circuit," a customer-engineered electronic component that creates constant
Power Output (CPO) for consistent, uniform cleaning. This technology incorporates Pulse Width Modulation (PWM),
which enables the SweepZone Ultrasonic Cleaning Systems to sense cleaning loads, solution level and voltage
fluctuations. What does that mean? The SweepZone cleaning systems automatically adjust to different conditions to
create uniform cleaning power-eliminating hot spots and weak areas.

Features:
A special cleaning solution specifically for injector needles is available. The cleaning tray is designed so the needles sit at an angle improving the cleaning process. The specialized cleaning fluid is sold by the gallon. It is mixed at (1) part solution to (5) parts water. This means one gallon of cleaner and 5 gallons of tap water per tank. It should provide
approximately (8) cleanings per gallon at a cost of $8.00-$10.00 per day per injector equipped with (300)+ needles. The time to clean one set of needles (150)+ is 12-20 minutes. The needles must be removed shortly after the cleaning cycle, rinsed with water and not be left to soak in the solution. Each tank will clean at least eight sets of (150)+ needles. If the needles are cleaned daily, as desired, additional cleanings may be made without changing the solution. Different brine additives may increase or decrease the number of cleanings per tank.
