Wolfking® C250

Wolfking C250

(2 Available)

Available As-Is or Refurbished

**Pics are in As-Is Condition

C-250 Options (Details on each below)

Uni-L (Recommended for pre-broken fresh product down to 28 degrees F)

Uni-S (Recommended for pre-broken fresh chunks instead of blocks at 23 degrees F as well as fresh products

S2T (Recommended for frozen blocks down to 15 degrees F, sized 4” x 8” x 15”)

Standard Components Included:

1 SS Cabinet w/Safety Step (Refurbished)

4 Machine Shoes (New) and Legs (Used)

1 SS Auger (Used)

1 SS Screw Cap (Used)

1 SS Spacer (Used)

1 SS Pilot Bearing (Used) w/New Bearing Assembly

1 SS Lining/Kinfe Housing (Used)

1 Knife Set (Size TBD)

1 75HP Motor (New)

1 Gearbox 45087REB (Rebuilt)

1 Pulley Drive (Used) and Belt (New)

1 SS Start Stop Button Assembly (New)

1 SS Trolley Weldment (New)

1 SS Jib Crane (Used or New) and Hoist (New)

1 Remote Mounted Master Control Panel (Tested)

3 x 440 volts, 60 c/s. In a NEMA 4 SS Enclosure

Wolfking C-250 Details

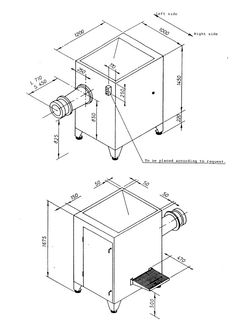

Size: See Dimension Sketch

Plate Size: 250 mm (10”)

Motor: 75 HP, 1800 RPM, 3 x 440 volts, 60 c/s, totally enclosed

Starter: Automatic, reversible Star/Delta in NEMA 4 enclosure

Sales Points:

Design:

1. Stainless Steel 18/8

2. Assembled with clamp system with davit and tackle for easy assembly and disassembly by one person

Capacity:

Wolfking C-250-Uni-L (CFD Not Included)

1. Up to 15,000 pounds per hour through 1/8” Holeplate

2. Handles pre-broken fresh products down to 28 degrees

Wolfking C-250-Uni-L (CFD Included)

1. Up to 32,000 pounds per hour through 1/8” Holeplate with Constant Flow Device (CFD)

2. Handles pre-broken fresh products down to 28 degrees

Wolfking C-250-Uni-S

1. Up to 15,000 pounds per hour through 1/8” Holeplate

2. Recommended for pre-broken fresh materials in chunks instead of frozen blocks, with a temperature of 23 F as well as fresh products.

Wolfking C-250-Uni-S2T

1. Up to 12,000 pounds per hour through 1/8” Holeplate

2. Recommended for frozen blocks down to 15 F, 4” x 8” x 15”

Knife Set:

1. Fixed precutter relieves knife set of additional pressure from product pushed by feed auger

2. Eight-bladed double edged cut knife with backwards slanted blades for a positive cutting angle. Available with inserts or as a solid knife to cut both sides.

3. Holeplates available from 1/16” to 1” with tapered/conical holes and knife cleaner pins preventing clog up of bone chips and gristle at hub of knife.

Accessories:

1. Block Hoist (for lifting blocks into hopper)

2. Safety Guards (for Holeplates sizes over 1/4”)

3. Accessory Cart/Trolly (Included in price)

4. Bone Elimination System (available but not included)

5. Constant Flow Device (CFD) (available but not included)

6. Feeding Device (available but not included)

NPK stocks thousands of parts at our local warehouse in Columbus Ohio for our customers around the World. If you are looking for any replacement parts, we would love to provide a free quote.
